Asset handling

Assets exist on the base layer, where they have actual meaning and value.

As with any execution layer solution, a Cartesi Application that wants to manipulate assets needs a secure way of "teleporting" the assets from the base layer to the execution layer and when necessary, back to the base layer.

Currently, Cartesi Rollups support the following types of assets:

• Ether (ETH)
• ERC-20
• ERC-721
• ERC-1155 Single
• ERC-1155 Batch

Deposits

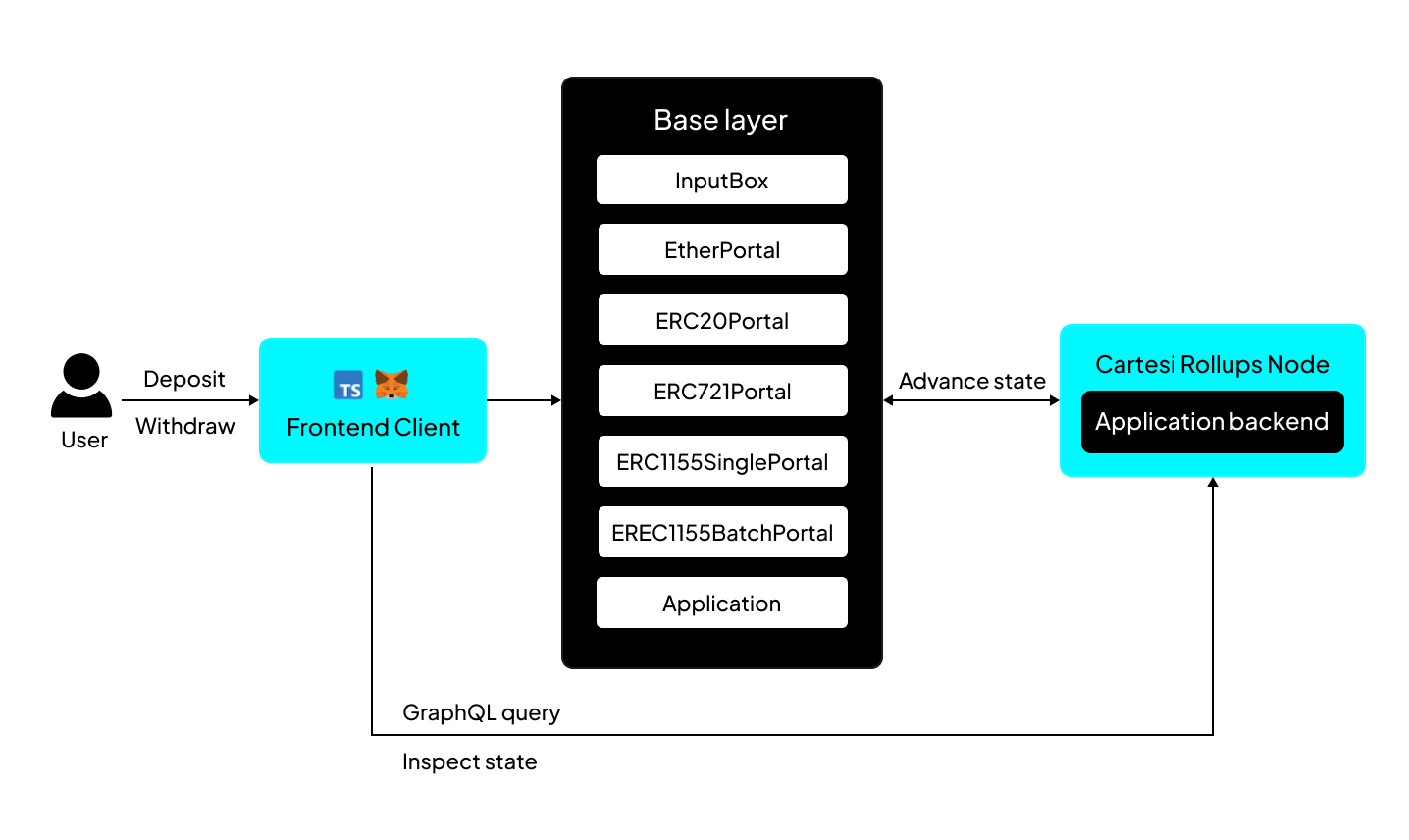

Portals enable the safe transfer of assets from the base layer to the execution layer. Users authorize portals to deduct assets from their accounts and initiate transfers to the Application contract.

When an asset is deposited, it is on the base layer but gains a representation in the execution layer. The corresponding Portal contract sends an input via the InputBox contract describing the type of asset, amount, and some data the depositor might want the application to read. The off-chain machine will then interpret and validate the input payload.

Deposit input payloads are always specified as packed ABI-encoded parameters, as detailed below.

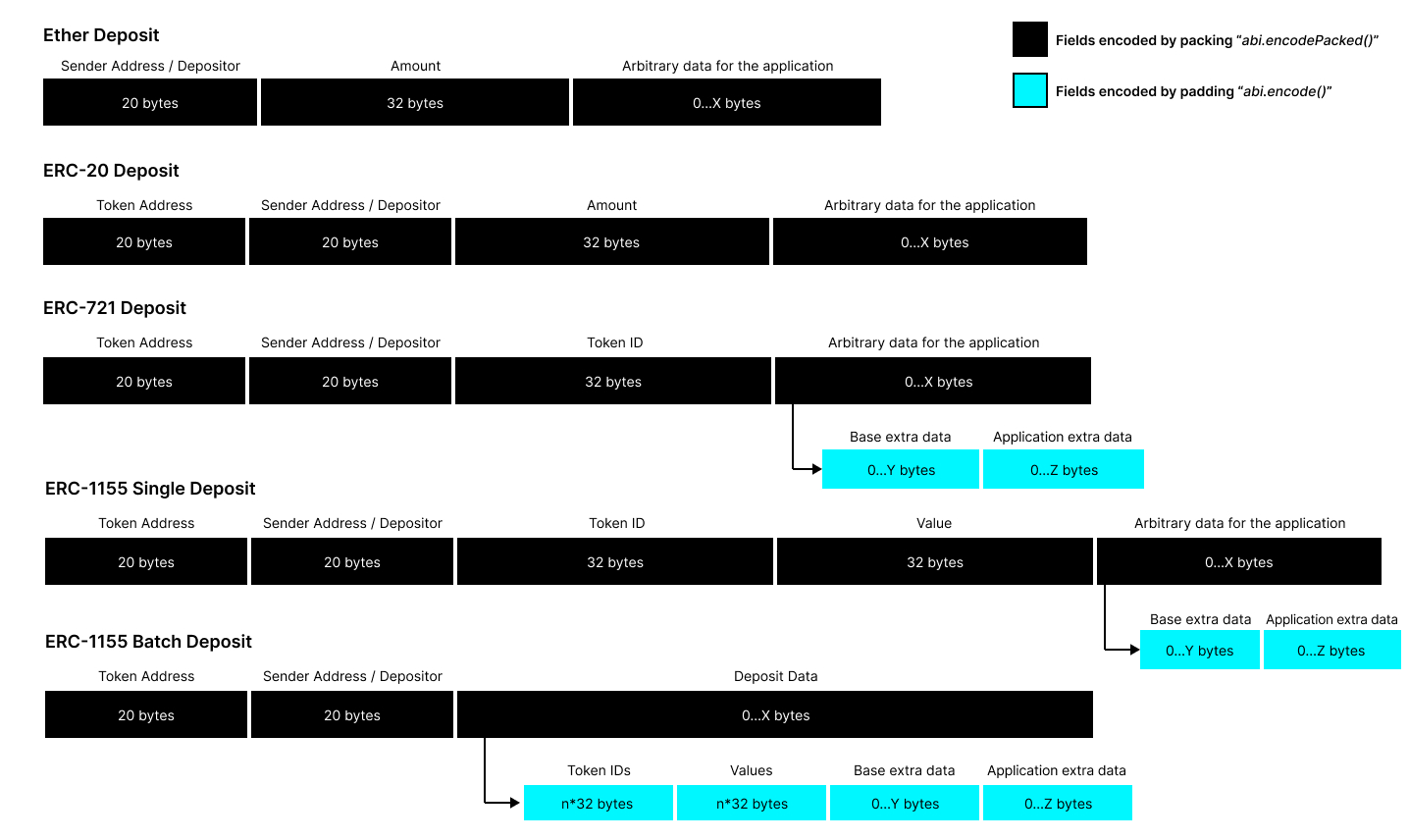

ABI encoding for deposits

Asset	Packed ABI-encoded payload fields	Standard ABI-encoded payload fields
Ether	address sender, uint256 value, bytes execLayerData	none
ERC-20	address token, address sender, uint256 amount, bytes execLayerData	none
ERC-721	address token, address sender, uint256 tokenId, standard ABI-encoded fields...	bytes baseLayerData, bytes execLayerData
ERC-1155 (single)	address token, address sender, uint256 tokenId, uint256 value, standard ABI-encoded fields...	bytes baseLayerData, bytes execLayerData
ERC-1155 (batch)	address token, address sender, standard ABI-encoded fields...	uint256[] tokenIds, uint256[] values, bytes baseLayerData, bytes execLayerData

Withdrawing assets

Users can deposit assets to a Cartesi Application, but only the Application can initiate withdrawals. When a withdrawal request is made, it’s processed and interpreted off-chain by the Cartesi Machine running the application’s code. Subsequently, the Cartesi Machine creates a voucher containing the necessary instructions for withdrawal, which is executable when an epoch has settled.

Withdrawing Tokens

Vouchers are crucial in allowing applications in the execution layer to interact with contracts in the base layer through message calls. They are emitted by the off-chain machine and executed by any participant in the base layer. Each voucher includes a destination address and a payload, typically encoding a function call for Solidity contracts.

The application’s off-chain layer often requires knowledge of its address to facilitate on-chain interactions for withdrawals, for example: transferFrom(sender, recipient, amount). In this case, the sender is the application itself.

Next, the off-chain machine uses the address of the application on the base layer to generate a voucher for execution at the executeOutput() function of the Application contract. This address is known to the offchain machine because it is embedded in the metadata of every input sent to the application, though the developer will need to implement extra logic fetch this address from the metadata then properly store and retrieve it when needed in situations like generating the above Voucher.

Below is a sample JavaScript code with the implementations to transfer tokens to whoever calls the application, notice that the const call variable is an encoded function data containing the token contract ABI, function name and also arguments like recipient and amount, while the actual voucher structure itself contains a destination (erc20 token contract where the transfer execution should occur), the payload (encoded function data in call) and finally a value field which is initialized to 0 meaning no Ether is intended to be sent alongside this transfer request.

import { stringToHex, encodeFunctionData, erc20Abi, hexToString, zeroHash } from "viem";

const rollup_server = process.env.ROLLUP_HTTP_SERVER_URL;
console.log("HTTP rollup_server url is " + rollup_server);

async function handle_advance(data) {
  console.log("Received advance request data " + JSON.stringify(data));

  const sender = data["metadata"]["msg_sender"];
  const payload = hexToString(data.payload);
  const erc20Token = "0x784f0c076CC55EAD0a585a9A13e57c467c91Dc3a"; // Sample ERC20 token address

    const call = encodeFunctionData({
    abi: erc20Abi,
    functionName: "transfer",
    args: [sender, BigInt(10)],
  });

  let voucher = {
    destination: erc20Token,
    payload: call,
    value: zeroHash,
  };

  await emitVoucher(voucher);
  return "accept";
}

const emitVoucher = async (voucher) => {
  try {
    await fetch(rollup_server + "/voucher", {
      method: "POST",
      headers: {
        "Content-Type": "application/json",
      },
      body: JSON.stringify(voucher),
    });
  } catch (error) {
    //Do something when there is an error
  }
};

Withdrawing Ether

To execute Ether withdrawal it is important to emit a voucher with the necessary details as regarding whom you intend to send the Ether to and also the amount to send, nevertheless since the Application contract Executes vouchers by making a safeCall to the destination, passing a value (Ether amount to send along with the call) and a payload (function signature to call), it's acceptable to leave the payload section empty if you do not intend to call any functions in the destination address while sending just the specified value of Ether to the destination address. If you intend to call a payable function and also send Ether along, you can add a function signature matching the payable function you intend to call to the payload field.

Below is another sample JavaScript code, this time the voucher structure has been modified to send ether to an address instead of calling a function in a smart contract, notice there is no encodedFunctionData, so the payload section is initialized to zeroHash.

import { stringToHex, encodeFunctionData, erc20Abi, hexToString, zeroHash, parseEther } from "viem";

const rollup_server = process.env.ROLLUP_HTTP_SERVER_URL;
console.log("HTTP rollup_server url is " + rollup_server);

async function handle_advance(data) {
  console.log("Received advance request data " + JSON.stringify(data));

  const sender = data["metadata"]["msg_sender"];
  const payload = hexToString(data.payload);


  let voucher = {
    destination: sender,
    payload: zeroHash,
    value: numberToHex(BigInt(parseEther("1"))).slice(2),
  };

  await emitVoucher(voucher);
  return "accept";
}

const emitVoucher = async (voucher) => {
  try {
    await fetch(rollup_server + "/voucher", {
      method: "POST",
      headers: {
        "Content-Type": "application/json",
      },
      body: JSON.stringify(voucher),
    });
  } catch (error) {
    //Do something when there is an error
  }
};

epoch length

By default, Cartesi nodes close one epoch every 7200 blocks. You can manually set the epoch length to facilitate quicker asset-handling methods.

Here are the function signatures used by vouchers to withdraw the different types of assets:

Asset	Destination	Function signature
Ether	dApp contract	withdrawEther(address,uint256) 📄
ERC-20	Token contract	transfer(address,uint256) 📄
ERC-20	Token contract	transferFrom(address,address,uint256) 📄
ERC-721	Token contract	safeTransferFrom(address,address,uint256) 📄
ERC-721	Token contract	safeTransferFrom(address,address,uint256,bytes) 📄
ERC-1155	Token contract	safeTransferFrom(address,address,uint256,uint256,data) 📄
ERC-1155	Token contract	safeBatchTransferFrom(address,address,uint256[],uint256[],data) 📄
